Provide excellent illumination performance over large inspection field
In addition to delivering steppers and scanners for cutting-edge semiconductor applications, Nikon also offers a suite of advanced inspection systems and specialized illumination systems for image sensor inspection.

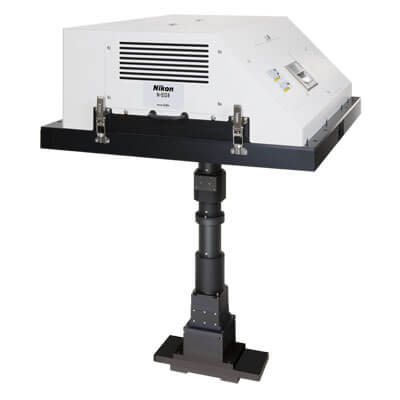

The N-SIS9 illumination system utilizes a built-in tester head design, whereas the N-SIS8 utilizes a prober-mounted type. Both designs provide highly uniform telecentric illumination to support optimal inspection of image sensors, with the N-SIS9 delivering illumination uniformity ≤ ± 2.0% over a large 80 mm x 100 mm illumination field size, and the N-SIS8 delivering uniformity ≤ ±1.5% across the greater 120 mm x 120 mm illumination field.
Enable high productivity broadband and wavelength-specific testing for image sensor inspection
The N-SIS9 and N-SIS8 designs enable high-speed, wide-range illuminance and spectral setting (including RGB) by using a turret for filter switching to maximize productivity. In addition, the N-SIS9 utilizes a thinner lens tube mounted within the tester head that further contributes to the high-speed inspection of a large number of image sensors.
Optimize capabilities with user-defined settings
Combining the telecentric illumination of the N-SIS8 system with the optional F-number adapter enables the user to freely set the F-number and the exit pupil position to optimize performance for their specific image sensor inspection applications.
A customized optional pupil module can also be added to the N-SIS9, which enables the user to create various chief ray angle characteristics that emulate those of smartphone lenses to further enhance inspection capabilities.
User-friendly designs streamline inspection
The N-SIS9 and N-SIS8 Nikon illumination systems can be easily controlled by users’ online commands to streamline and simplify image sensor inspection operations.
| N-SIS9 | N-SIS8 | |
| Type | Built-in tester head type | Prober mounted type |
| Illumination field size | 80 mm x 100 mm | 120 mm x 120 mm |
| Illumination uniformity | Less than ±2.0% | Less than ±1.5% |
